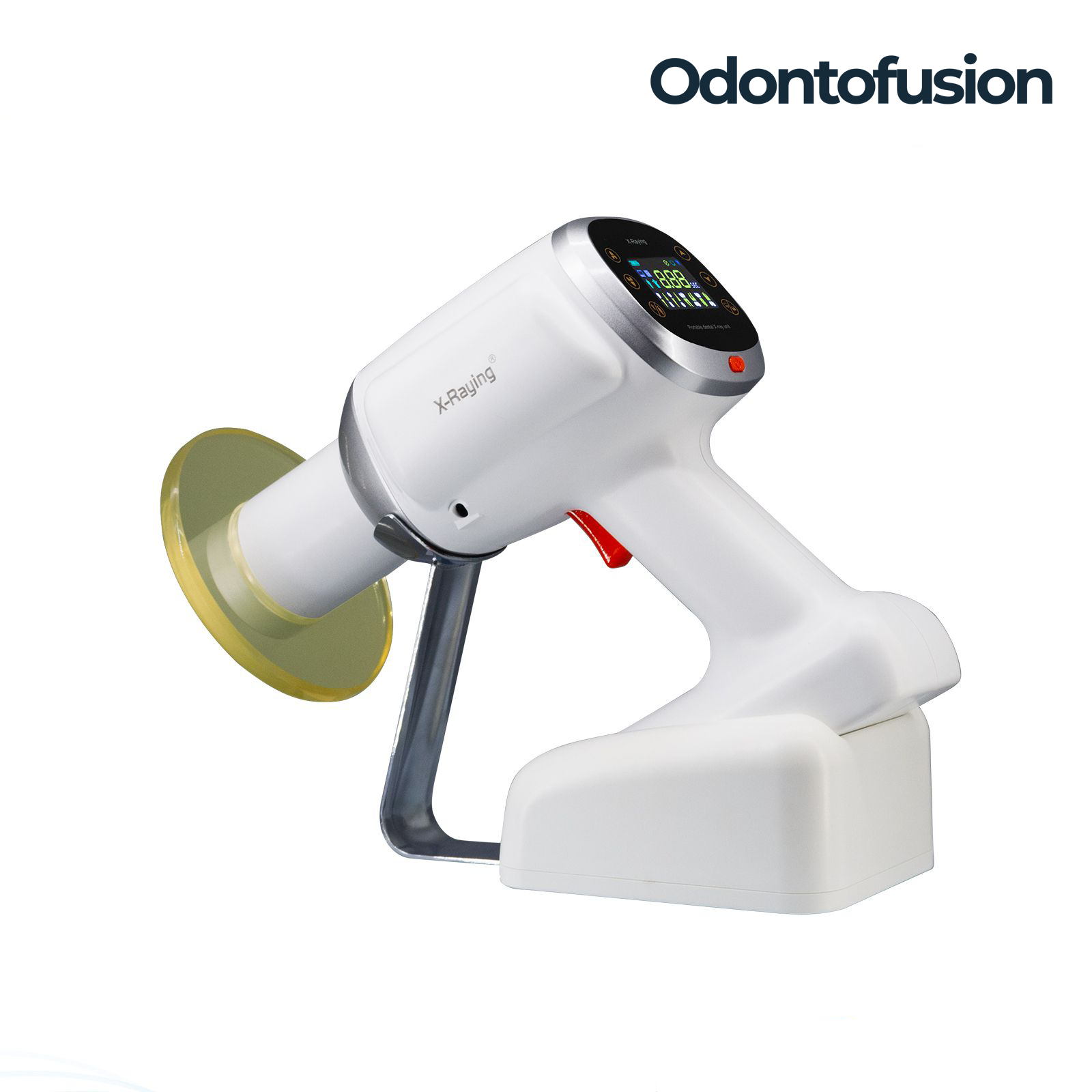

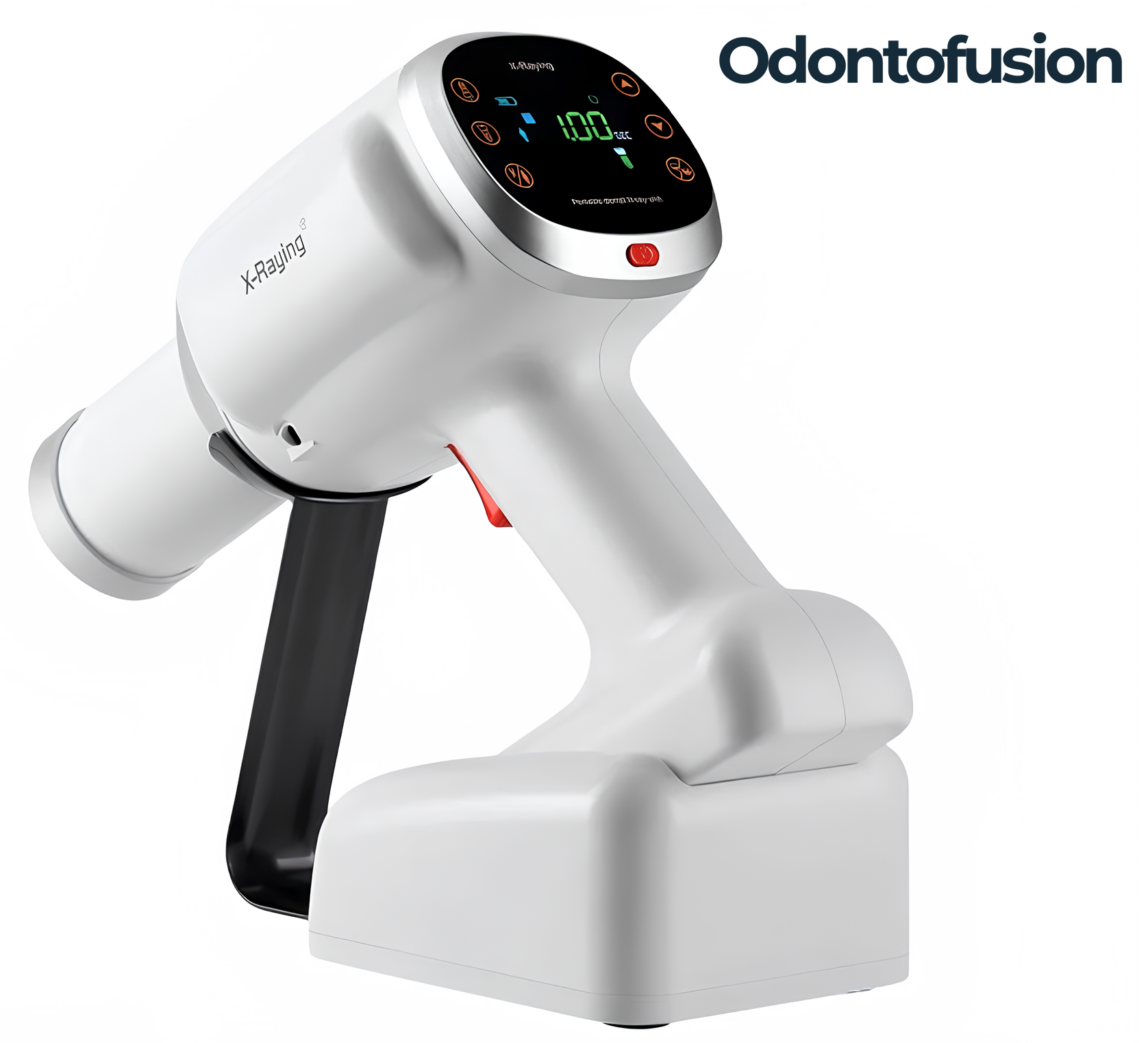

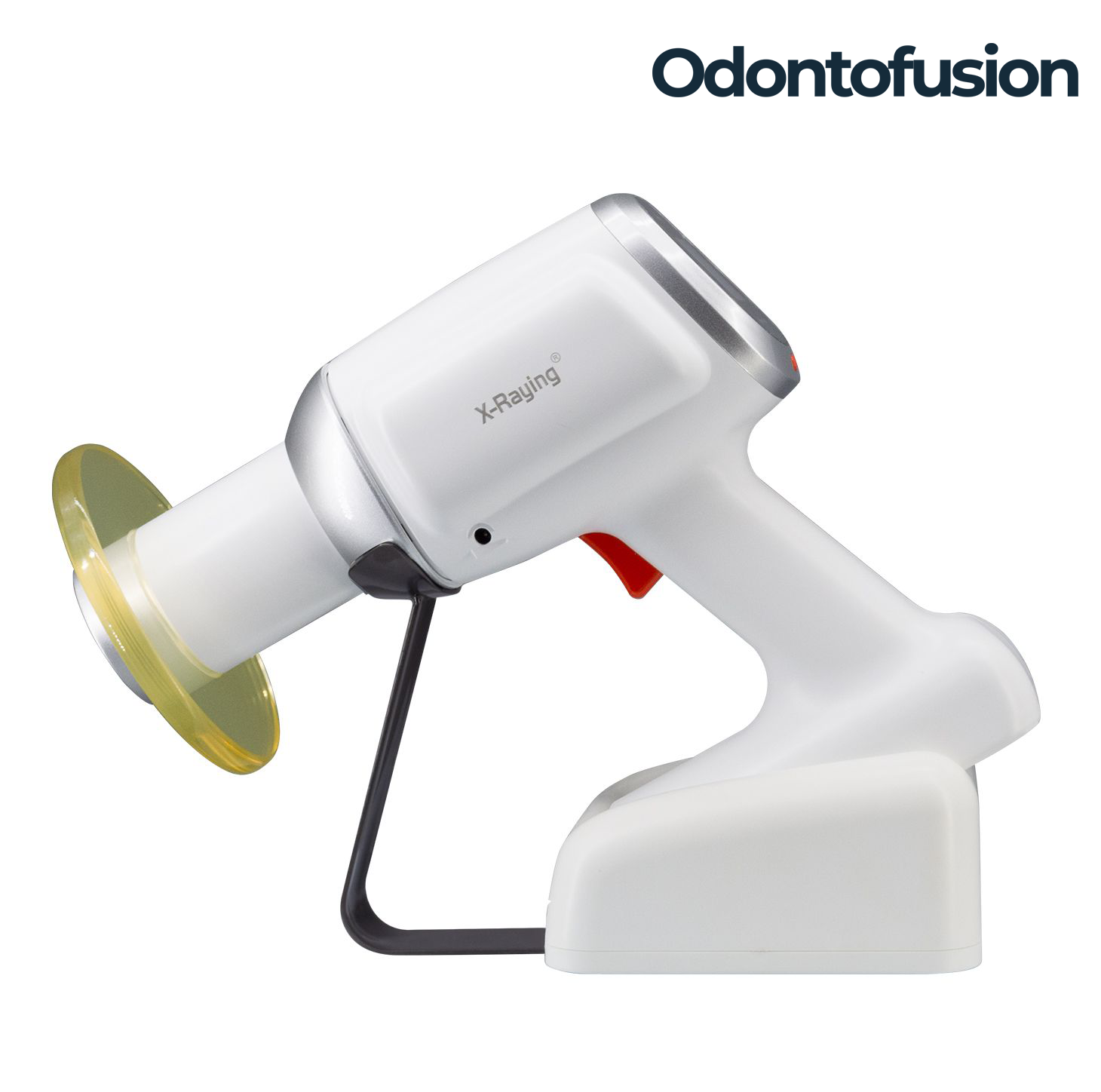

RAY-500 Portable Dental X-ray

    The RAY-500 Portable Dental X-Ray Machine is a compact, high-frequency imaging solution designed for modern dental clinics and mobile dentistry. It delivers precise, high-quality images with minimal radiation exposure for both patients and operators.

• Low patient radiation dosage

• Internal shielding for operator safety

• Portable, lightweight, and easy to use

• One-hand operation for convenience

• Up to 200 exposures per full charge


• 0.4mm micro-focus tube for sharp imaging

• Reduced scatter radiation for clarity

• Stable DC high-frequency output

• No interference from external AC power


• Compact and ergonomic build

• Lightweight for portability
• Microcomputer IC control system

• One-touch exposure setting


• Supports dental film

• Compatible with digital sensors


• Tube Voltage: 60KV
• Tube Current: 2.0mA

• Exposure Time: 0.1 – 2.0 seconds

• Frequency: 30KHz

• Rated Power: 120VA

• Focal Spot Size: 0.4mm

• Skin to Cone Distance: 150mm

• Battery: DC 1550mAh

• Input Voltage: AC 100–240V

• Output Voltage: DC 14.8–16.8V

• Weight: 4.0 kg


    Built using high-quality semiconductor components from Samsung, Rubycon, KIA, and HTC for reliable and stable performance.
